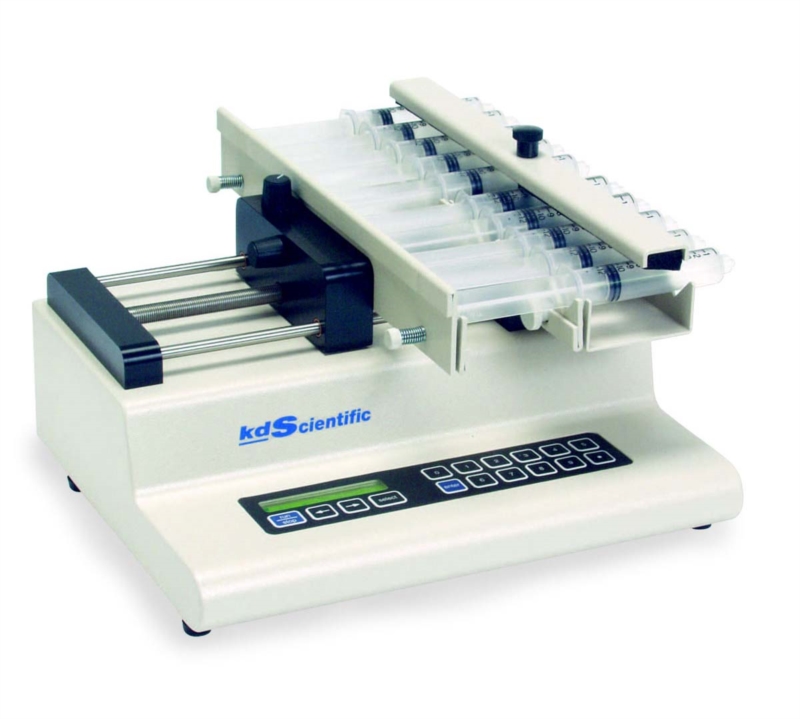

KDS 230 Infusion/Withdrawal Multiple Syringe Pump
Ideal for applications requiring multiple syringes, the KDS230 is an adaptation of the KDS210. The pump operates exactly like a KDS210, but has been modified to hold up to 10 syringes.
Features
- Multiple syringe holder:
- One to ten syringes, 10 µl - 10 ml
- One to six syringes, 20 ml - 60 ml
- One to four syringes, 100 ml - 140 ml
- Withdrawal then infusion
- Backlit LCD display
- Knob locks/unlocks drive block for effortless, drag-free adjustment
- Simple menu-driven setup:
- select syringe size from displayed table
- dispense volume
- dispense flow rate
- Continuous dispense volume display
- Preset volume control and automatic shut-off
- Settings can be reviewed or changed during operation
- Stall detection
- Choice of unit selection
- Last settings stored in permanent memory
- Built-in RS-232C interface for computer "daisy chaining" up to 100 pumps
- TTL interface for foot switch, timer, relay control, outputs for run indicator, valve control
- Independent rate and volume settings for infusion and withdrawal
- Multiple mode selection:
- Infusion
- Withdrawal
- Infusion then withdrawal
- Withdrawal then infusion
- Continuous cycle
- Optional keypad programmable feature (KDS230P)
| Specifications |
|---|
| Pump Type: |
|
|---|
| Max. No. of Syringes |
|
|---|
| Syringe Size |
- 10 µl to 10 ml (10 syringes)
- 20 ml to 60ml (6 syringes)
- 100 ml to 140 ml (4 syringes)
|
|---|
| Dimensions |
- 11 x 9 x 5.5 in.
- 28 x 23 x 14 cm
|
|---|
| Weight |
|
|---|
| Linear Force |
|
|---|
| Advance Per Microstep |
|
|---|
| Max Step Rate (1/2 Step) |
|
|---|
| Min Step Rate |
|
|---|
| Accuracy |
|
|---|
| Reproducibility |
|
|---|
| Audible Alarm |
|
|---|
