codice: ZH/DNM/009606
Microplate Reader - Range lunghezza d'onda 400÷800 nm

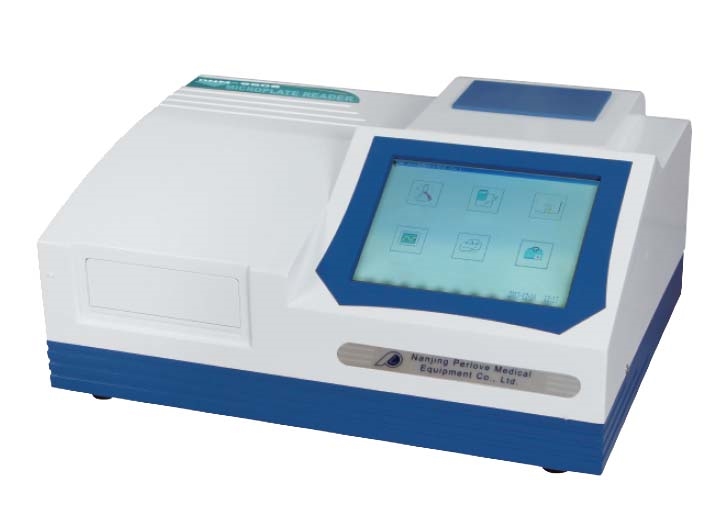

Microplate Reader

Application - the instrument is compatible with registered diagnostic ELISA kits, primarily used in hospitals or some detections related to clinical immunology.

Specifications:

  • Range of working wavelenght: 400÷800 nm
  • Measurement System: 8-Channel optical system
  • Filters: 4 standard filters (405/450/492/630 nm) or totally 10 filters can be installed
  • Reading speed: Single wave: 5s/ dual waves: 10 s
  • Measurement range: 0.000÷4.000 Abs
  • Photometric accuracy: +/- 0.01 Abs (0.001÷1.500 Abs)
  • Stability: <0.005 Abs
  • Linearity: < +/- 1% (0,001÷1.500 Abs)
  • Display: 7.5" touch screen
  • System: Win 7 and Win XP, LIS, HIS
  • Calculation method: Two-point, linear regression method, semi logarithmic method, ratio log method, full log method, exponential regression (Log A-C), Logit-Log, Point to point (Broken line method), four parameter method, two square curve, three square curve and three square spline
  • Printer: built in thermal print
  • Data communications: RS 232
  • power supply: AC 220 V/ 110 V +/- 22 V - 50÷60 Hz +/- 1 Hz
  • Dimensions: 420×350×178 (mm)
  • Weight: 9 kg

Features

  1. Self-checking function
  2. Filter choosing-mode: automatically
  3. Large memori to pre-store 200 programs and save detection results on 105 pieces of plates
  4. Internal printer and external printer via software
  5. Checking mode: single wave/dual wave detection
  6. High sensitivity, high accuracy, fast detection speed and friendly operation


Scheda tecnica
Scheda tecnica
3999,00 €
