SPECIFICHE TECNICHE
Modelli:
B-193
Testata:
Trinoculare, rotante a 360°, inclinata a 30°, con regolazione della distanza interpupillare e compensazione diottrica
Oculari:
Grande Campo 10x/18mm
Revolver:
Quadruplo, inverso
Obiettivi:
DIN Acromatici 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25
Tavolino:
Doppio strato, 125x115 mm con range di traslazione X-Y 70x30mm
Messa a fuoco:
Manopole di messa a fuoco macro e micrometrica coassiali
Illuminatore:
Sistema X-LED2 con regolazione dell’intensità luminosa
Condensatore:
Abbe, A.N. 1.25 con altezza regolabile e diaframma ad iride
Alimentazione:
Alimentatore esterno 100-240 Vac50-60 Hz, uscita 7,5Vdc
_

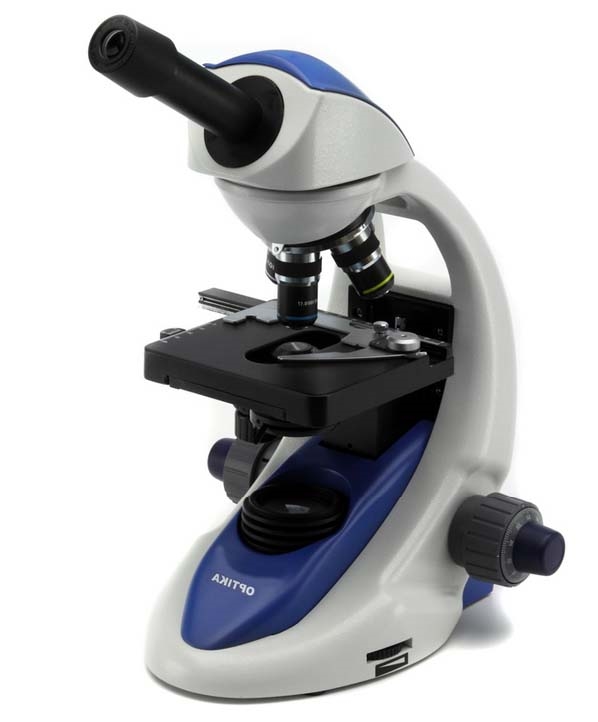

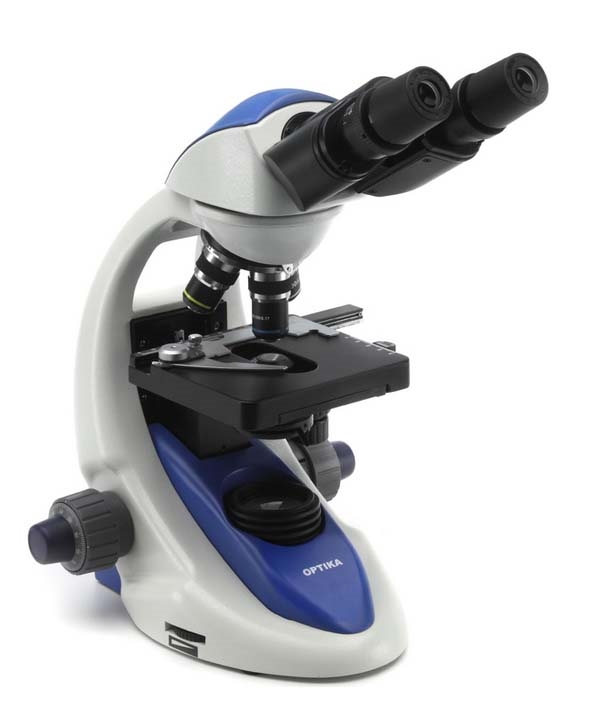

B-190 Series
Biological microscopes for the next teaching generation
The B-190 series is the result of a perfect fusion between years of experience in the microscopy field and a refined design study.
This series represents our product philosophy at its best: quality, reliability and innovation. The B-190 series is the answer of OPTIKA Microscopes to the challenge of the future in the teaching field.
TECHNICAL SPECIFICATIONOptical system
The optical system has been developed for emanding users; it consists of high quality components which guarantees an high image contrast and an excellent optical resolution. The optical components have been designed and treated with special techniques to prevent the formation of moulds and fungi.StatifThe stand has a modern and ergonomic design. It is easy to carry the microscope thanks to the large opening behind the revolving nosepiece, to be used as a handle. The opening allows the user to see clearly the objectives and the samples, as requested in discussion groups.Mechanics:
The moving parts are made by means of machine tools with computerized numerical control reducing manufacturing tolerance and increasing the reliability of the instrument.The strict controls on materials and production processes are optimized through the procedures established by ISO 9001:2008 quality system.Illumination:
The future of illumination. The X-LED2 TM powered illumination system has been developed by our R&D dept. and consists of a combination of LED and
optical technology. A high-efficiency single chip LED improved by a special optical system doubles the light intensity generated by an ordinary LED.
The resulting light is comparable to the light generated by a 30W halogen lamp but with a colour temperature of 6300K: this means a white light instead of the yellow one produced by filament lamps. The electric consumption (3W only) proves the high efficiency of this system: the same light intensity with less consumption; 10% of an ordinary 30W halogen lamp’s consumption. In addition, the lifetime of the LED is 50.000 hours instead of the 1.500 hours of an ordinary halogen lamp.
