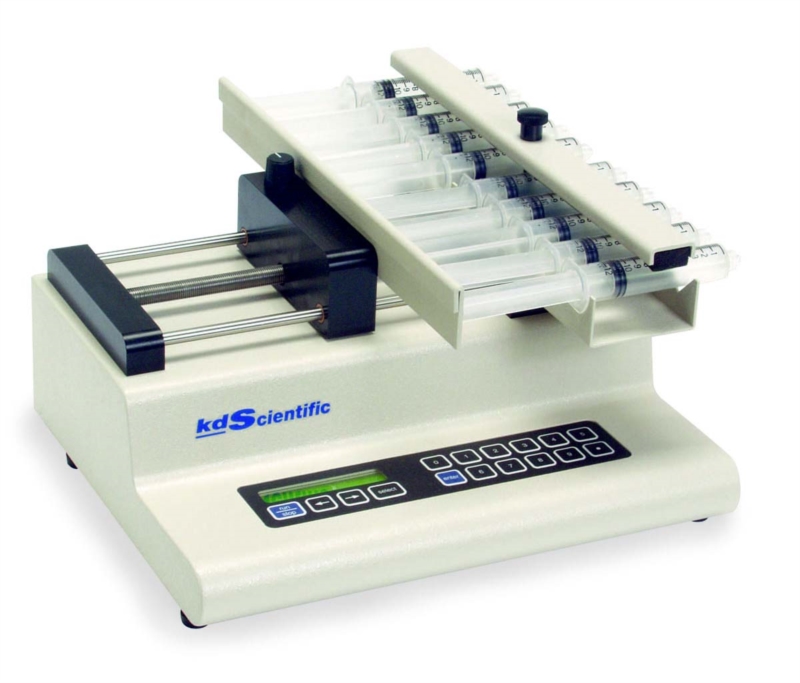

KDS 220 Multi-Syringe Infusion Pump
KDS 220 Multi-Syringe Infusion Pump: Ideal for applications requiring multiple syringes. Each has been modified to hold up to 10 syringes.
Features
- Multiple syringe holder:
- One to ten syringes, 10 µl - 10 ml
- One to six syringes, 20 ml - 60 ml
- One to four syringes, 100 ml - 140 ml
- Backlit LCD display
- Knob locks/unlocks drive block for effortless, drag-free adjustment
- Simple menu-driven setup:
- select syringe size from displayed table
- dispense volume
- dispense flow rate
- Continuous dispense volume display
- Preset volume control and automatic shut-off
- Settings can be reviewed or changed during operation
- Stall detection
- Choice of unit selection
- Last settings stored in permanent memory
- Built-in RS232C interface for computer "daisy chaining" up to 100 pumps
- TTL interface for foot switch, timer, relay control, outputs for run indicator, valve control
- Optional multi-step keypad programmable feature (KDS220P)
| Specifications |
|---|
| Pump Type: |
|
|---|
| Max. No. of Syringes |
|
|---|
| Syringe Size |
- One to ten syringes, 10 µl - 10 ml
- One to six syringes, 20 ml - 60 ml
- One to four syringes, 100 ml - 140 ml
|
|---|
| Dimensions |
- 11 x 9 x 5.5 in.
- 28 x 23 x 14 cm
|
|---|
| Weight |
|
|---|
| Linear Force |
|
|---|
| Advance Per Microstep |
|
|---|
| Max Step Rate (1/2 Step) |
|
|---|
| Min Step Rate |
|
|---|
| Accuracy |
|
|---|
| Reproducibility |
|
|---|
| Audible Alarm |
|
|---|
