codice: MP470
MP470 Strumento avanzato per la misura del punto di fusione

MP470 Melting Point

Feature:

● Automatic Video Melting Point Appratus introduce perfectly integrate video technology

   into melting point measuing.
● Test the sample with dark color.
● According to 21 CFR Part 11.

Hanon MP470 Automatic Melting Point Apparatus perfectly integrate video technology into melting point measuring.It not only provides users with reliable melting point test result, but also intuitively displays temperature curve and real-time video image, and achieves the function of save, replay the video etc. It provides better help for users to observe melting process of sample.

The instrument can be widely used in the chemical industry and pharmaceutical research. It is the essential equipment for production of drugs, spices, dyes, and measurement of other organic crystal substances.

Characteristics:

China first-created Automatic Video Melting Point Apparatus perfectly integrate video technology into melting point measuring.
Innovative double true-color VGA touch screen is easy for operation and observation.
Vast amounts of storage space, can achieve 300 minutes of continuous shooting or nearly 10000 photos storage.
0.1℃--20.0℃ linear temperature rise design is satisfactory for varied temperature rise options.
Store up 80 sets of customers experimental method, 40 sets atlas and test data.
Data can be printed. It’s completely in line with pharmacopeia and GLP requirements.

Temperature range room temperature-400°
Temperature resolution 0.1℃
Repeatability 0.2℃ at heating rate of 0.2℃/min
Temperature accuracy ±0.4℃(<200℃)±0.7℃(<300℃)
Temperature gradients 0.1℃--20℃

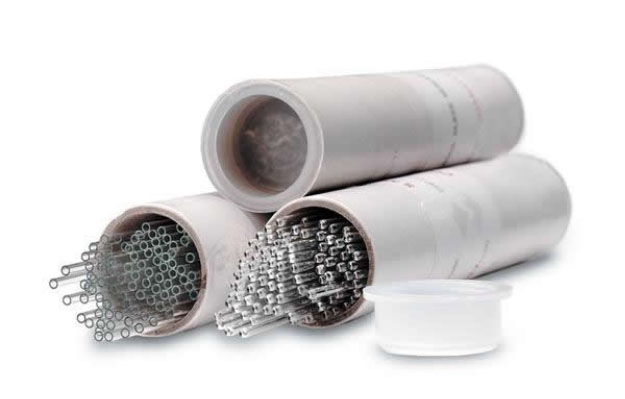

Standard capillary size I.D. 1.0mm, O.D. 1.4mm
Display TFT5.6"  Touch screen﹢TFT3.5" screen
Interface USB,  SD card, RS232, Enternet
Video output SD Card
Magnification 7
Capacity per batch 4pc./batch
Operator account 15
Camera & Video Camera & Video
video reply Yes
Curve storage 40 groups
Result storage 1000 groups
SD card capacity 16G
Method storage 80
Power supply 220V±10%  50Hz
Power 120W
Dimension 305*220*230


7981,00 €
