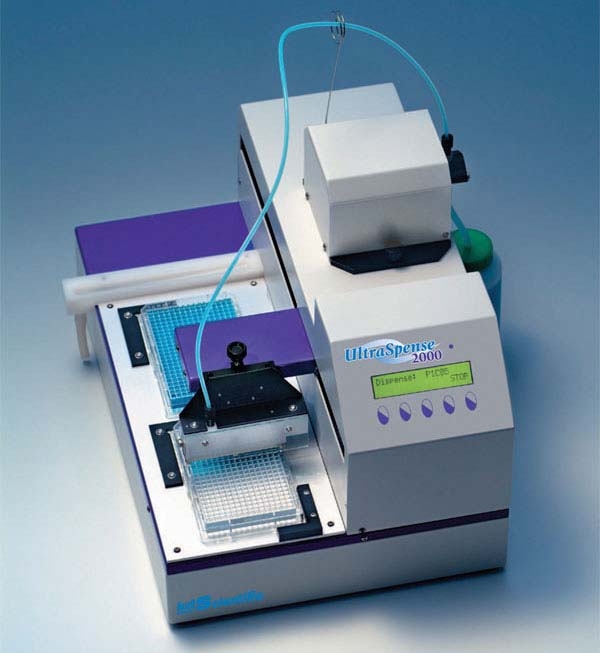

UltraSpense 2000
Accurate – Affordable – Flexible – Fast Multiwell high throughput dispenser The KD Scientific UltraSpense 2000 is an economical high performance dispensing system for 96 and 384 well plates. It is affordable, flexible, fast and accurate.
- Up to 2 deep well or low profile plates and or spin columns
- Long life piston pump
- High precision over lifetime
- No Calibration required
- Flexible dispensing patterns
The fast and flexible dual plate dispenser for 96 and 384 well plates UltraSpense 2000 is the answer to the increasing demand for an automated yet affordable dispenser for 96 and 384 well microplates. High accuracy and precision dispensing into deep well or low profile microplates, coupled with low dead volume and easy programming makes UltraSpense 2000 the ideal solution for virtually all dispensing applications.
Dispense a wide range of solvents, acids, bases and other aggressive liquids with confidence through the completely inert liquids path. Optimize performance for a wide viscosity range through the adjustable pump speed. UltraSpense is very fast and accurate; dispense 100 µl into each well of a 96 well plate within 14 seconds with better than 0.5% C.V. precision. UltraSpense 2000 is the answer to the increasing demand for an automated yet affordable dispenser for 96 and 384 well microplates.
High accuracy and precision dispensing into deep well or low profile microplates, coupled with low dead volume and easy programming makes UltraSpense 2000 the ideal solution for virtually all dispensing applications. Dispense a wide range of solvents, acids, bases and other aggressive liquids with confidence through the completely inert liquids path. Optimize performance for a wide viscosity range through the adjustable pump speed. UltraSpense is very fast and accurate; dispense 100 µl into each well of a 96 well plate within 14 seconds with better than 0.5% C.V. precision.
Features
- Height-adjustable manifold
- Deep-well, standard and low-profile microplates can be used
- Pump-back capability and low dead volume
- User selectable volumes
- Programmable: flexible dispensing patterns, start and stop position, and omitted columns
- Automatic, repeatable, precise dispensing
- Long life piston pump
- No required calibration or maintenance intervals
- Easy operation and programming
- Completely inert liquid path - only PTFE, PVDF, glass and ceramic contact liquid
- Single and dual plate high speed dispensing: < 14 seconds for a 96-well plate; <20 seconds for a 384-well plate
- User dialog in four languages
Specifications |
Volume Range |
|
Volume Increments |
- 5 µl standard, others selectable
|
Accuracy |
- +/- 1.5% (mean volume/column)
|
Precision |
|
Dead Volume |
|
Start/End Position |
|
Column Exclusion |
|
Dispensing Speed |
- 14 sec., 100 µl/well 96 well plate
|
Dispensing Speed |
- 16 sec., 20 µl/well 384 well plate
|
Computer Interface |
|
Number of Plates |
|
Plate Formats |
- 96 and 384 well; Low profile to deep well
|
Number of Stored Programs |
|
Dimensions (W x D x H) |
11.0 x 16.1 x 10.6 in (440 x 550 x 220 mm) |
Weight |
|
