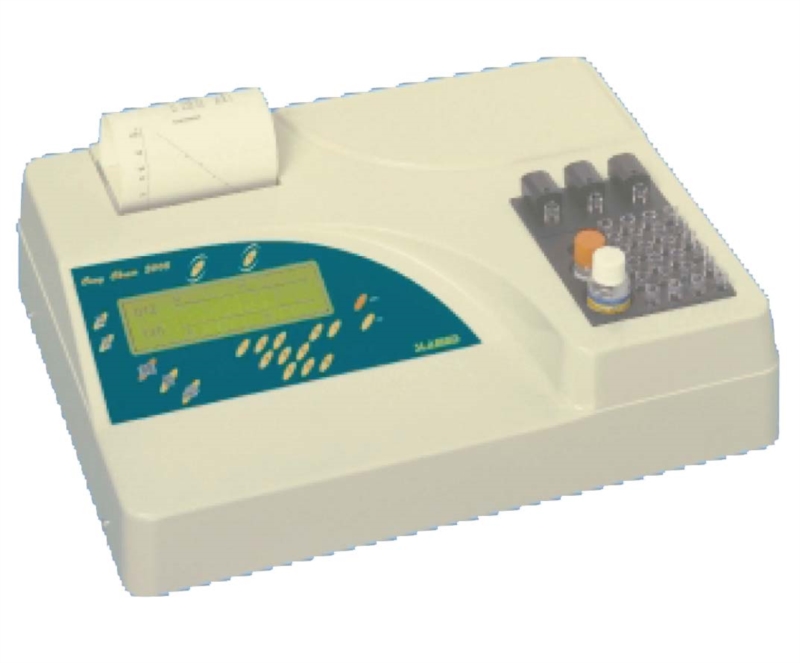

K-3003 Chrom

3-channel coagulometer K-3003 Chrom, suitable for the complete coagulation diagnostic with test like:

• Prothrombin index PT (Ratio, INR, time)
• Thrombin time TT (Ratio, time)
• Caoli-Kephalin time APTT (Ratio, time)
• Fibrinogen (concentration mg %. g/l)
• Both groups of coagulation factors
• Coagulation inhibitors (ATIII, protein C. protein S, heparin)
• D-Dimers

Main features:

In two channels the changes of the optical density (turbidimetry) are measured chronometrically. If both of these channels are used for a double analysis of the same sample, the results are presented together with the deviation value.

The third channel is a colorimeter, used for the measurement of colorimetrical tests, wich are based on chromogenous substrata. Thus the K-3003 Chrom fits the demand of all coagulation tests in today's medical laboratories. As the internal memory can accept 55 individual programs, it's possible to use all kind of test kits available on the market.

A cost effective operation is granted by the low consumption of only 50 ml sample and 50÷100 ml reagent volume.

The measuring results with patient number, date and time are printed in 110 mm width by the built-in thermoprinter or can be transmitted via the RS 232 data port to a host computer.

When the power is disconnected the internal memory can stor up to 15.000 patient results and 60 calibration curves.
