Microplate Reader - Range lunghezza d'onda 400÷800 nm

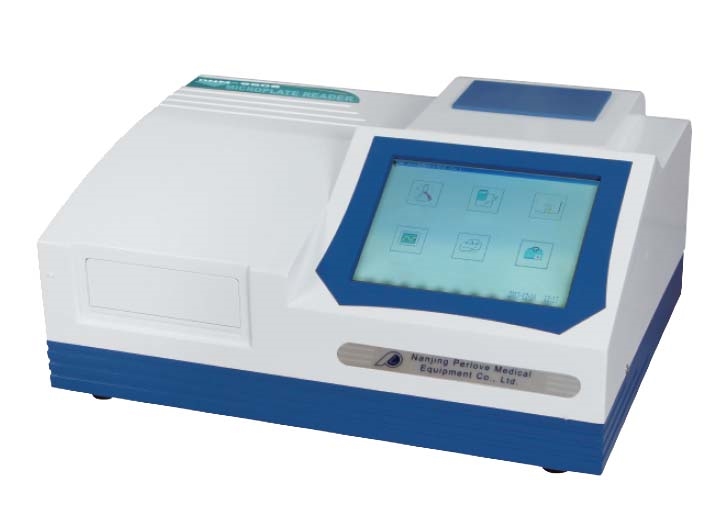

Microplate Reader
Application - the instrument is compatible with registered diagnostic ELISA kits, primarily used in hospitals or some detections related to clinical immunology.
Specifications:
- Range of working wavelenght: 400÷800 nm
- Measurement System: 8-Channel optical system
- Filters: 4 standard filters (405/450/492/630 nm) or totally 10 filters can be installed
- Reading speed: Single wave: 5s/ dual waves: 10 s
- Measurement range: 0.000÷4.000 Abs
- Photometric accuracy: +/- 0.01 Abs (0.001÷1.500 Abs)
- Stability: <0.005 Abs
- Linearity: < +/- 1% (0,001÷1.500 Abs)
- Display: 7.5" touch screen
- System: Win 7 and Win XP, LIS, HIS
- Calculation method: Two-point, linear regression method, semi logarithmic method, ratio log method, full log method, exponential regression (Log A-C), Logit-Log, Point to point (Broken line method), four parameter method, two square curve, three square curve and three square spline
- Printer: built in thermal print
- Data communications: RS 232
- power supply: AC 220 V/ 110 V +/- 22 V - 50÷60 Hz +/- 1 Hz
- Dimensions: 420×350×178 (mm)
- Weight: 9 kg
Features
- Self-checking function
- Filter choosing-mode: automatically
- Large memori to pre-store 200 programs and save detection results on 105 pieces of plates
- Internal printer and external printer via software
- Checking mode: single wave/dual wave detection
- High sensitivity, high accuracy, fast detection speed and friendly operation
