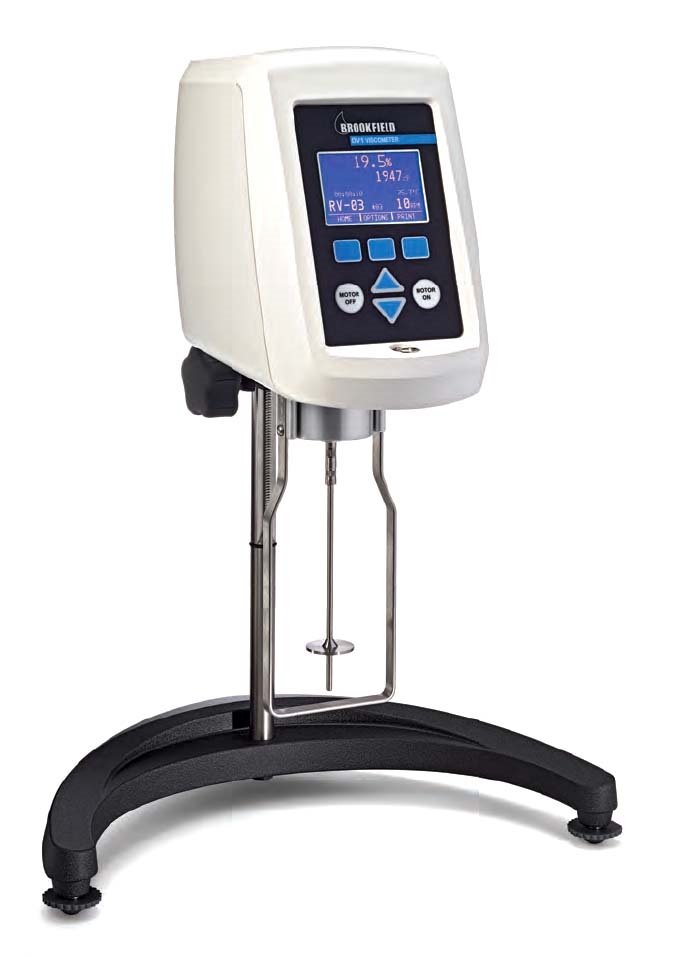

Our low cost continuous sensing Digital Viscometer now with timed measurement function

A continuous sensing capability for rapid viscosity measurement makes this economical digital viscometer a standout. Measures viscosity and temperature simultaneously (with an optional temperature probe). With its timed measurement function, data can easily be sent to a PC or printer. Optional software allows the DV-I Prime to collect, analyze and record test data.

EATURES & BENEFITS

• PC Interface for use with optional Wingather SQ Software and output connection to printer
• Available as a choice of multiple languages: English, French, German, Portuguese, Russian, Spanish
• Simplified user interface for more direct access to features
• Direct access to time measurement function (time to torque, time to stop)
• Temperature off-set capability to ±5°C
• Senses and displays continuously:
  • Viscosity (cP or mPa·s)
  • Temperature (°C or °F) (OPTIONAL)
  • % Torque
  • Speed (rpm)
  • Spindle used
• Torque measurement accuracy: 1% of full scale range
• Repeatability: 0.2% of full scale range
• Select all functions from user-friendly keypad
• Choice of 18 rotational speeds
• Optional RTD temperature probe
• Auto-zero function to ensure precision torque measurement
• Auto-range function to define full scale range (FSR) for all spindle/speed combinations
• Warns of under- or over-range torque measurement condition
• Printing to Dymo^® capability
• Timed Stop feature to measure viscosity at precise user specified time interval
• Time to Torque feature to measure the time interval for sample to reach user defined torque value
• Compatible with all Brookfield accessories
• NIST traceable viscosity standards available

SPECIFICATIONS

SPRING TORQUE

Each of our standard Laboratory Viscometers/ Rheometers are supplied with an internal spring used to calculate the viscosity of a material. These springs have different measuring capabilities:

• LV is for low viscosity materials and can measure the “thinnest” materials. Typical examples include inks, oils, and solvents.
• RV is for medium viscosity materials than those measured with an LV torque. Typical examples include creams, food, and paints.
• HA is for higher viscosity materials than those measured with an RV torque. Typical examples include gels, chocolate and epoxies.
• HB is for even higher viscosity materials than those measured with an HA torque spring. Typical examples include asphalt, caulking compounds, and molasses.

Additional special springs are also available upon request. To learn more about spring ranges and model selection, please call Brookfield AMETEK or one of our authorized dealers.

TEMPERATURE PROBE

Optional RTD Temperature Probe DVP-94Y.
Also requires special circuit board for temperature sensing. Must be ordered when instrument is purchased. Call for details.

LEARN ABOUT VISCOSITY

Need help? Our Education section may be just the thing to clarify unfamiliar terms and help start you on your way to a better understanding of viscosity. Learn about viscosity and rheological relationships, Newtonian and non-Newtonian fluids, and how a Brookfield instrument can help your production process and much more.
