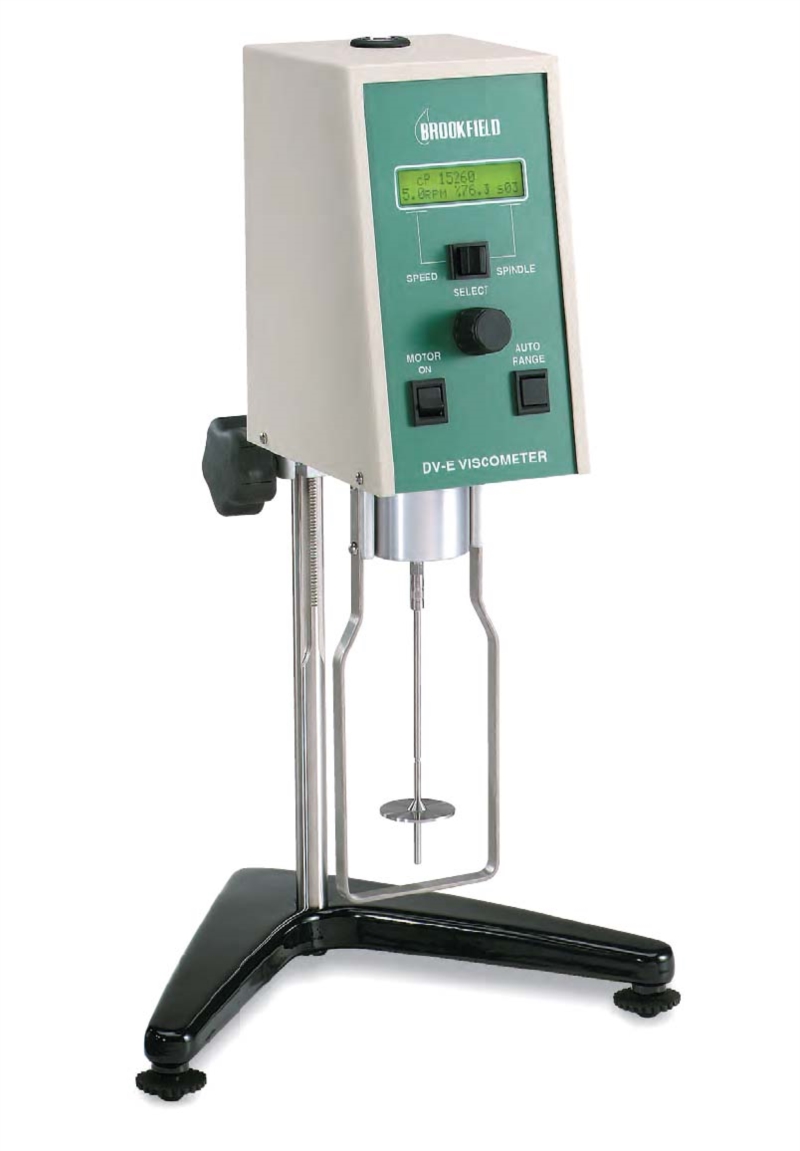

Viscosimetro digitale a 18 velocità, completo di giranti, manuale di istruzioni, stativo, valigetta di trasporto e certificato di calibrazione a rintracciabilità NIST.
Ampio display a grandi caratteri per la visualizzazione dei valori di viscosità, momento torcente, girante in uso, velocità di rotazione.
Strumento conforme alla normativa CE.
Disponibile in 4 versioni a scelta, a seconda del range di viscosità di interesse così come di seguito indicato:
Nessun calcolo richiesto: lettura diretta della viscosità in cP o mPa*s.
Visualizzazione con display ampio e chiaro dei parametri di viscosità, % torcente, velocità/girante.
Semplice da utilizzare: modello intuitivo con un semplice tasto di accensione e pulsanti di selezione.
Manopola di rotazione per la velocità: scelta immediata degli rpm.
Pulsante di selezione per determinare la scal FSR (Full Scale Range)
18 velocità per coprire un ampio range di misura.
The DVE combines economy and ease of operation with traditional Brookfield excellence to provide reliable viscosity readings. Easy to use interface allows operators to change test parameters easily and test like a pro no time!
The digital display ensures easy and accurate readout of test results for simultaneous measurement of viscosity and torque. Quality of manufacture guarantees reliable performance and long life.
FEATURES & BENEFITS
- Low cost and easy to use
- Direct display in:
- cP or mPa·s
- % Torque, Spindle, and Speed
- Torque measurement accuracy: 1% of full scale range
- Repeatability: 0.2% of full scale range
- Compatible with all Brookfield accessories
- NIST traceable viscosity standards available
- 18 speeds for greater range capability (0.3 to 100 rpm)
SPECIFICATIONS
click to enlarge
SPRING TORQUE
Each of our standard Laboratory Viscometers/ Rheometers are supplied with an internal spring used to calculate the viscosity of a material. These springs have different measuring capabilities:
- LV is for low viscosity materials and can measure the “thinnest†materials. Typical examples include inks, oils, and solvents.
- RV is for medium viscosity materials than those measured with an LV torque. Typical examples include creams, food, and paints.
- HA is for higher viscosity materials than those measured with an RV torque. Typical examples include gels, chocolate and epoxies.
- HB is for even higher viscosity materials than those measured with an HA torque spring. Typical examples include asphalt, caulking compounds, and molasses.
Additional special springs are also available upon request. To learn more about spring ranges and model selection, please call Brookfield Engineering or one of our authorized dealers.
LEARN ABOUT VISCOSITY
Need help? Our Education section may be just the thing to clarify unfamiliar terms and help start you on your way to a better understanding of viscosity. Learn about viscosity and rheological relationships, Newtonian and non-Newtonian fluids, and how a Brookfield instrument can help your production process and much more.
